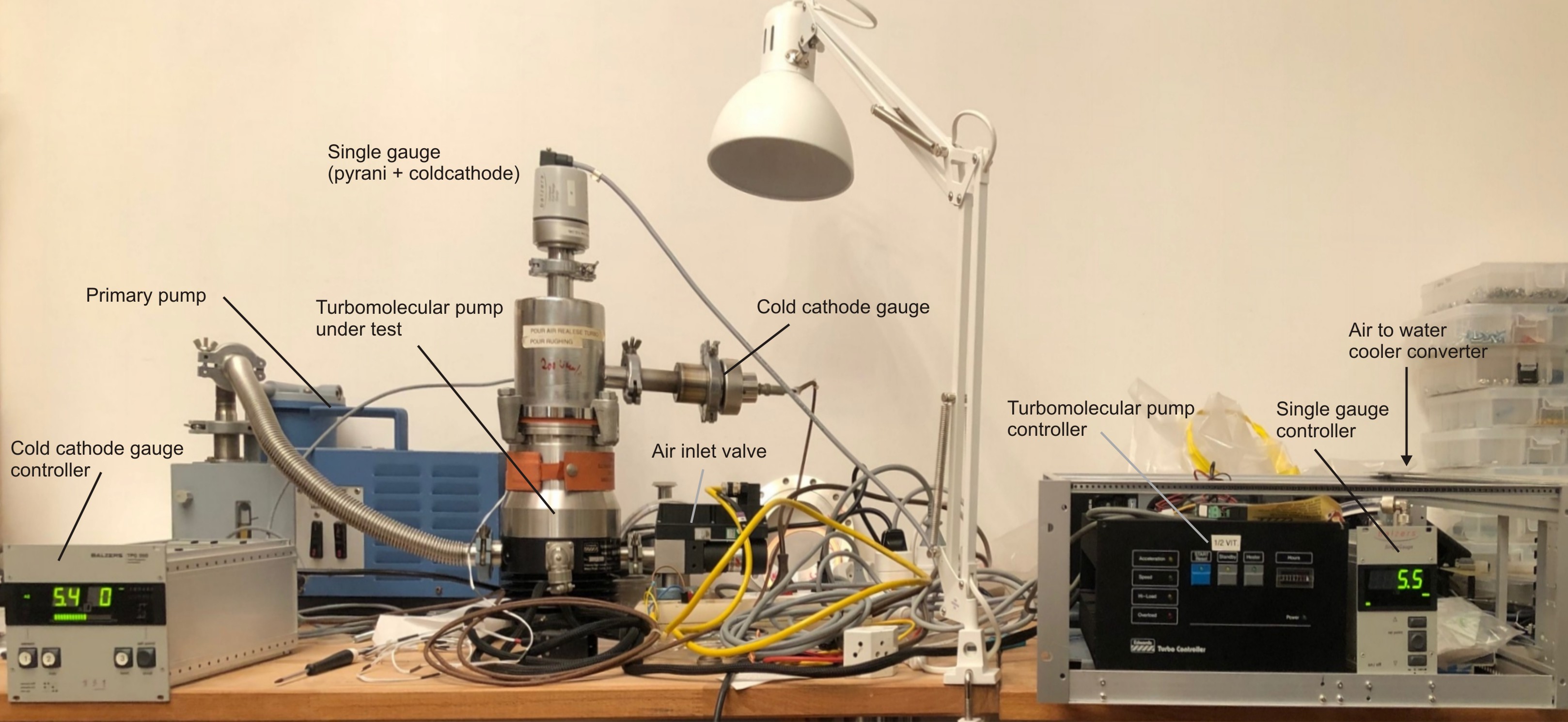

Turbomolecular Pump Test Bench

Induplan has the capability to test high vacuum equipment and gas control equipment. We sell second hand material tested.

The turbopump is water cooled with a Cartilex air to water converter.


Cold cathode gauge
Measurement range                             5 x 10^-3 to ~10^-10 to 5 x 10^-3 mbar .
Initial accuracy and reproducibility       +5%.

The measurement are made with air. For other gas a correction factor shall be used.

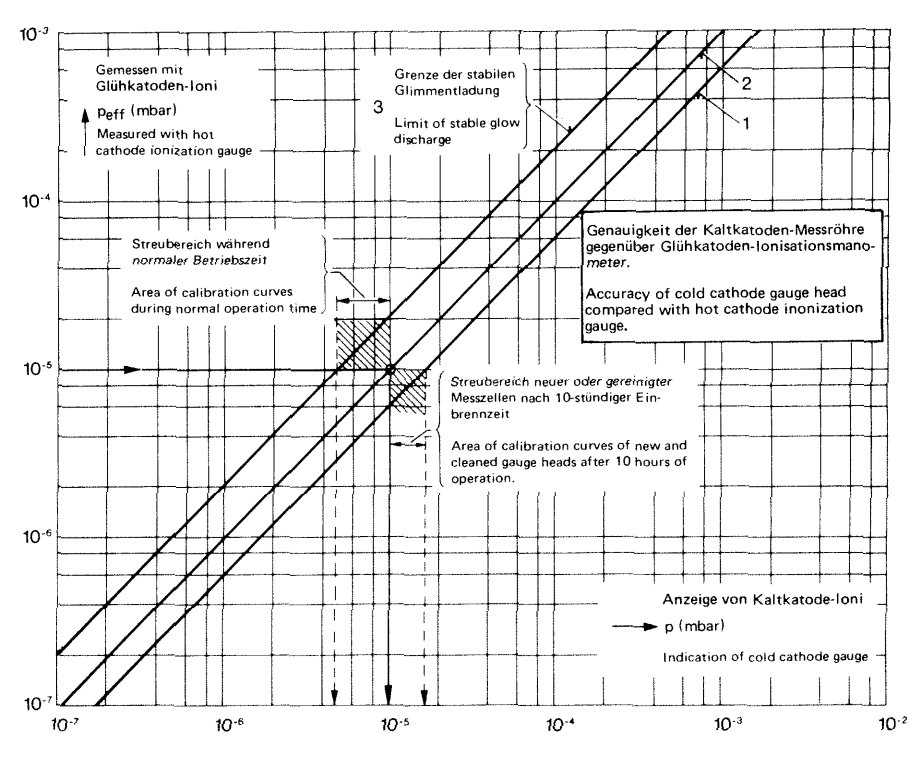

                                                                 Calibration of the cold cathode gauge.

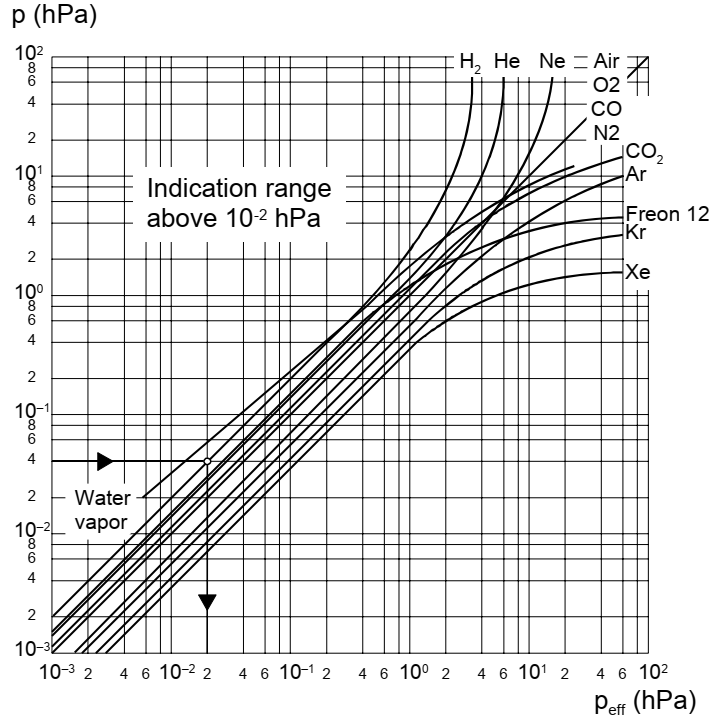

Pirani gauge

Measurement range (air, O2, CO, N2)          8×10^-4 … 1500 mbar
Repeatability with air                                   ≈±2% of reading in the range of 1×10^-2 … 100 hPa
