Alcatel Turbomolecular Pump 5401 with controller CFF 450 type 56804
Pumping speed 400 l/s
Almost new 726,9h

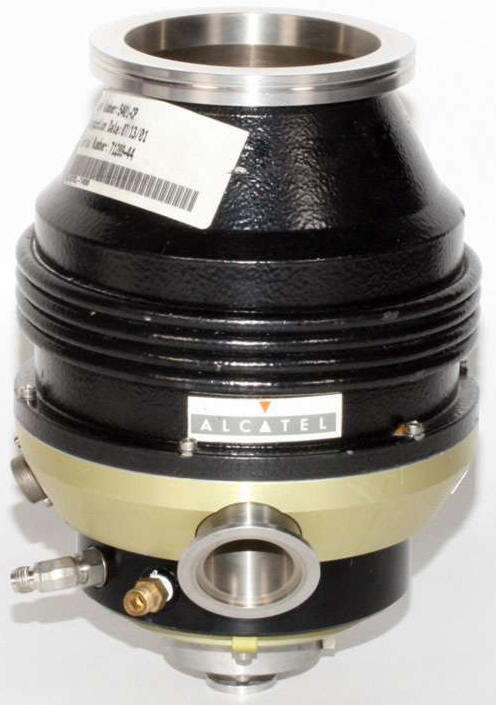

The Alcatel 5401 turbo molecular high vacuum pump has a pumping speed of 400 liters per second (l/s). The pump inlet is LF 160 with a ISO KF-40 exhaust foreline flange. The Alcatel 5401 turbomolecular pump can be used for all general-purpose and corrosive high vacuum applications. This pump has been fully tested recently.
Specifications
|
Manufacturer |
CIT Alcatel |
|
Rotational Speed |
27,000 RPM |
|
Model |
5401CP |
|
Startup Time |
3 minutes |
|
Pumping Speed Nitrogen |
400.0 l/s (847.6 CFM) |
|
External Cooling |
Water Cooled |
|
Ultimate Pressure |
6x10-9 mbar |
|
Duration of use |
726.9 hours |
|
Inlet Flange |
ISO-K 60mm (6.3 in) |
|
Next greasing sevice |
|
|
Foreline Flange |
KF 40mm (1.6 in) |
|
Dimensions |
|
|
Controller Included |
Yes |
|
Width |
25.4cm (10.0 in) |
|
Cables Included |
Yes |
|
Depth |
25.4 cm (10.0 in) |
|
Inlet Screen Included |
Yes |
|
Height |
22.9 cm ( 9.0 in) |
|
Bearing Type |
Grease |
|
Weight |
10Kg (21 lb ) |
|
Installation Orientation |
Any |
|
|
|

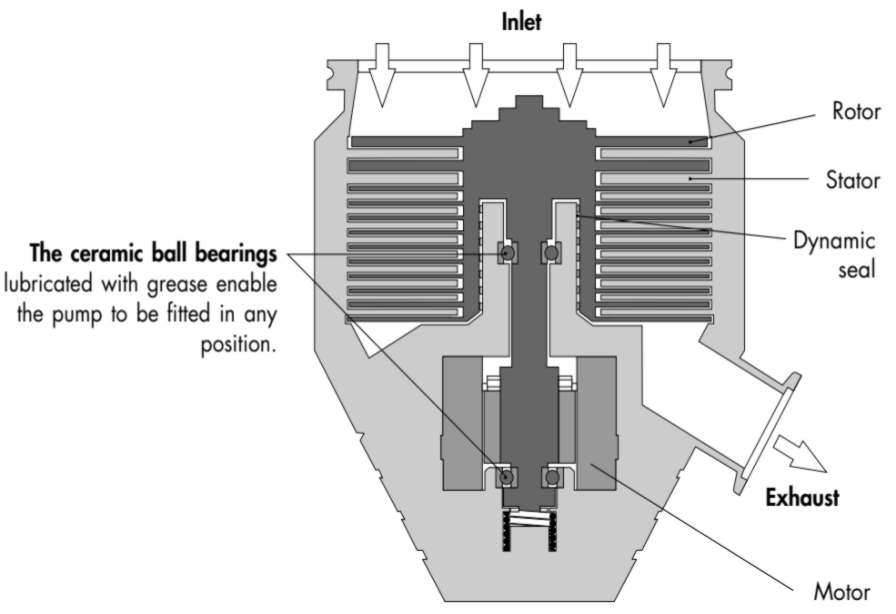

Turbomolecular pump operating principle
In molecular operation, the gas molecules of the vacuum system arrive at the pump intake. They are trapped between the rotating disks of the rotor and the stationary disks of the stator and carried to the exhaust of the pump.

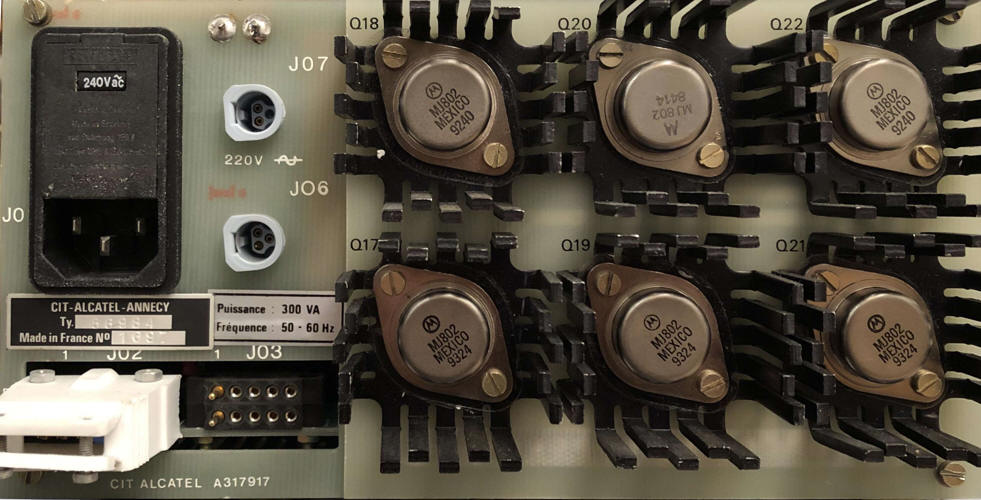

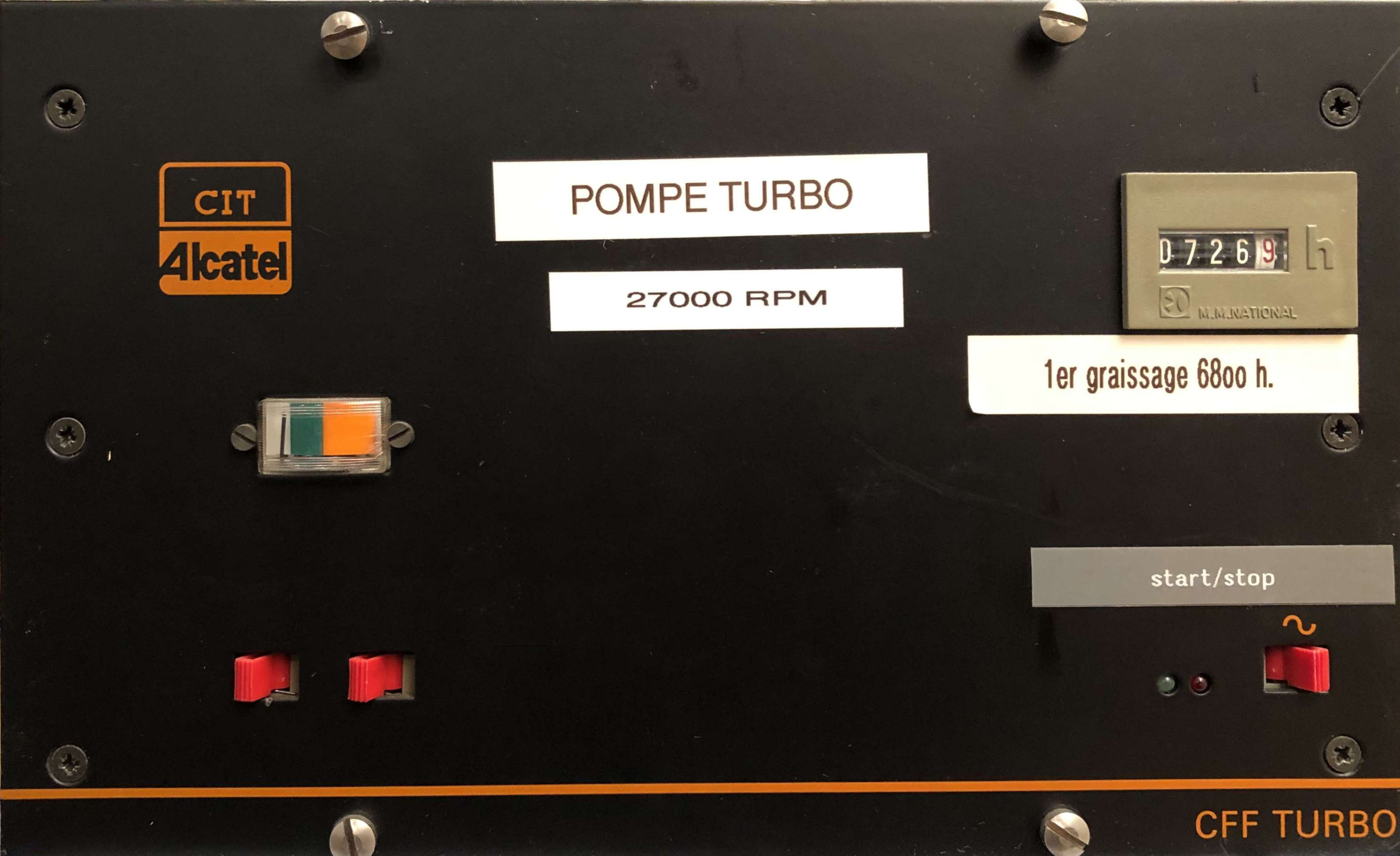

ALCATEL CIF 450 Turbo Pump Controller Type 56984
The Alcatel CFF 450 controller is designed to be used with the following turbo pumps:
•ALCATEL
5150, ALCATEL 5150CP
•ALCATEL 5400
•ALCATEL 5401
•ALCATEL
5402, ALCATEL 5402CP
Devices almost new (726.9 hours), tested.
Price including
Euro 2'000.- +VAT and transport
at
6800 hours
